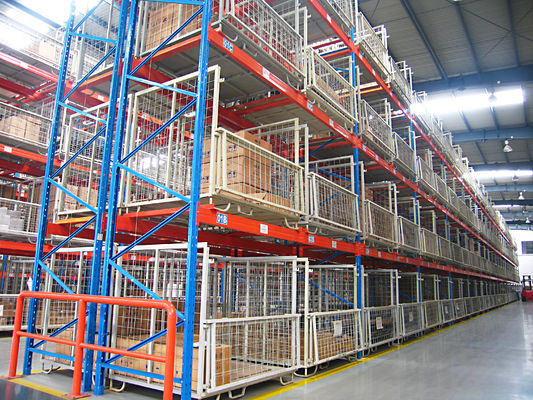

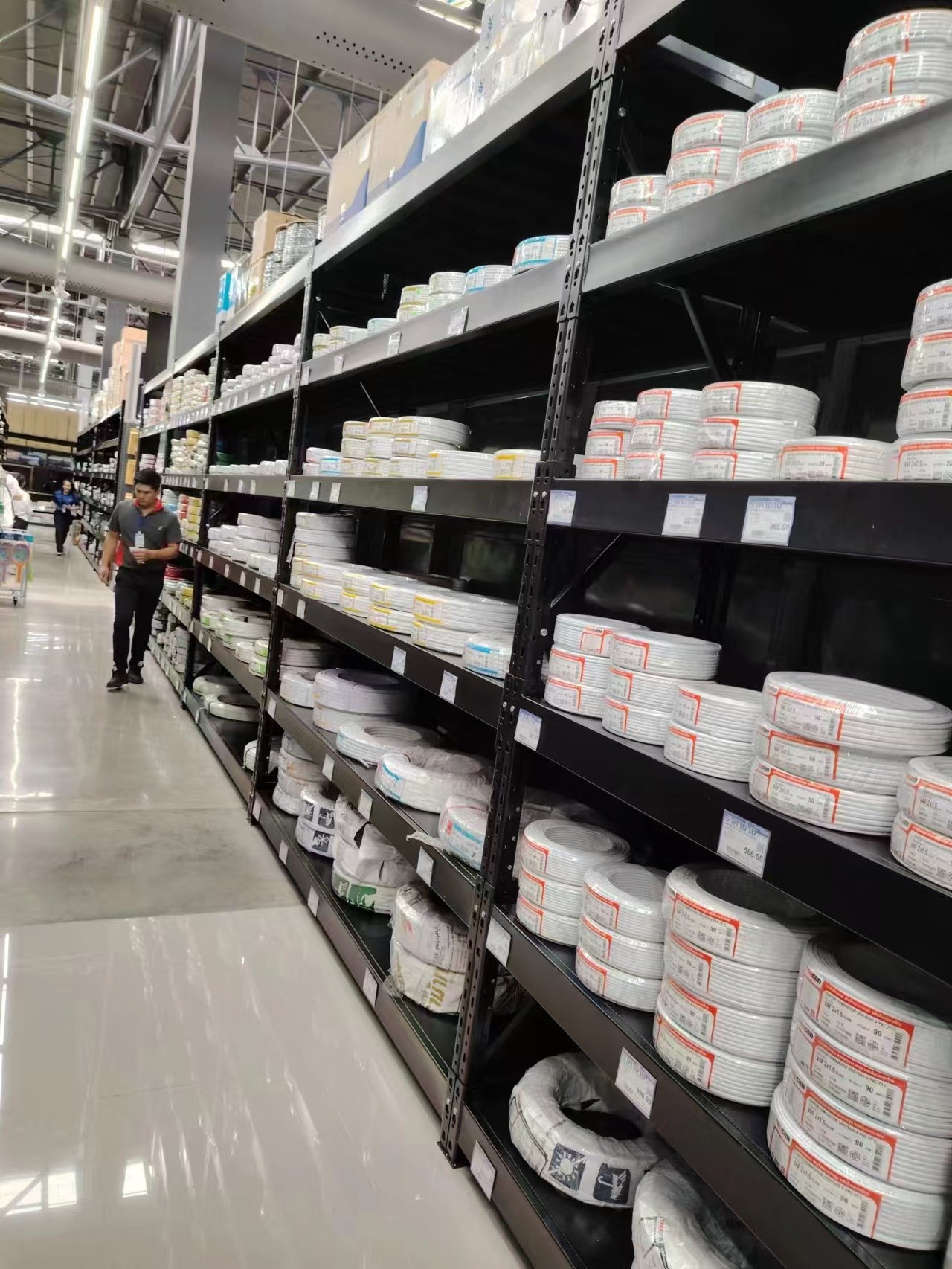

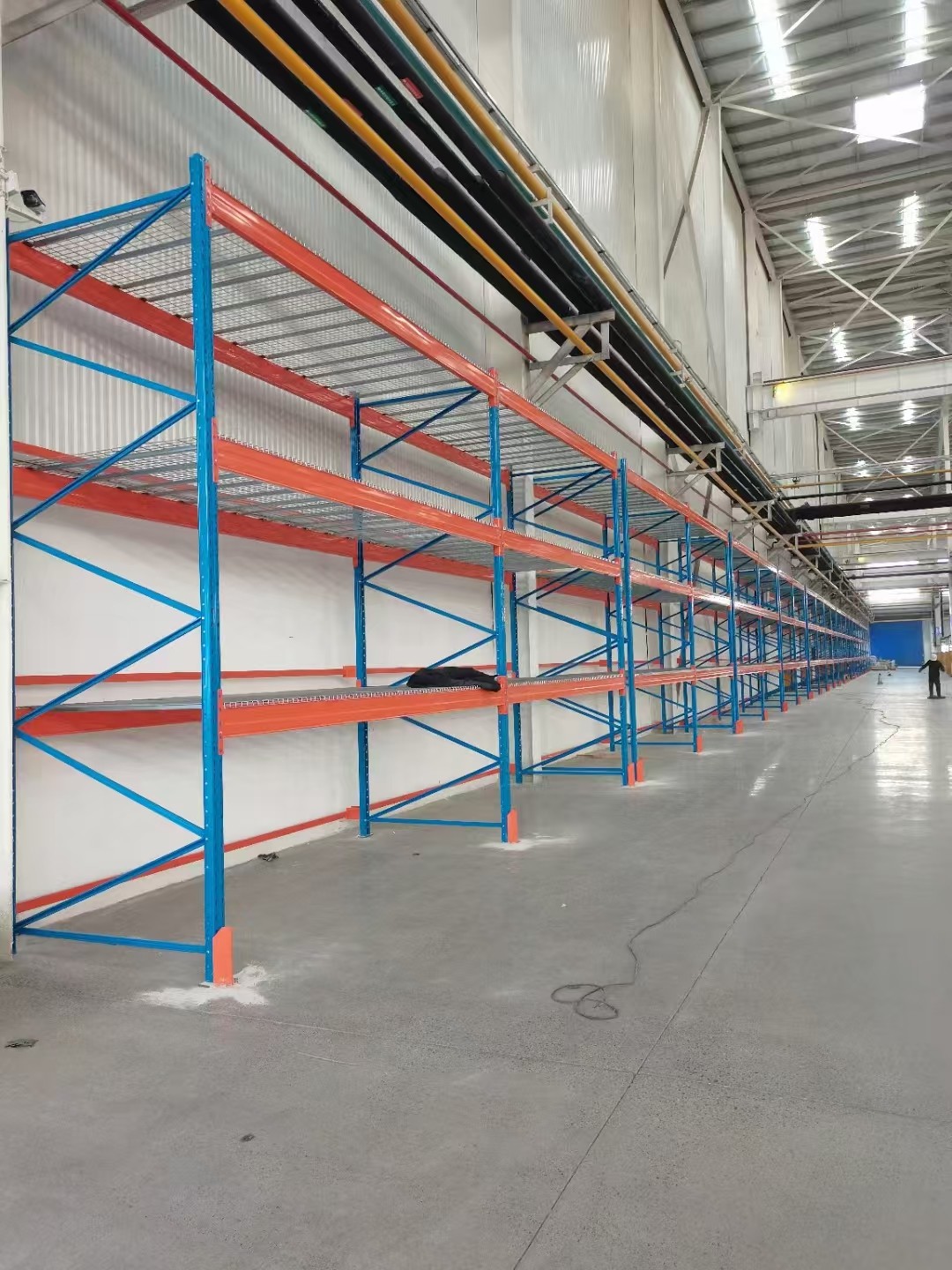

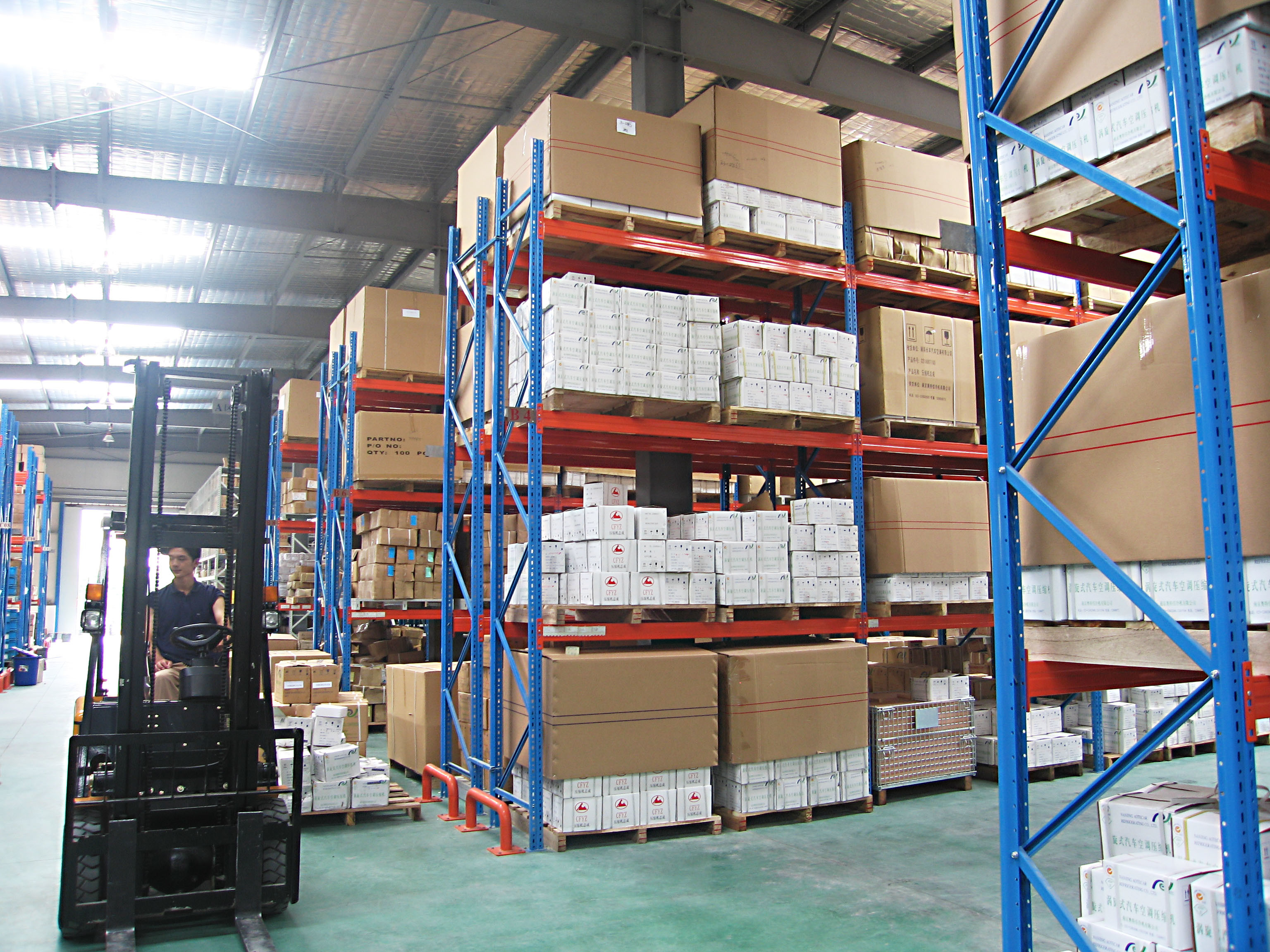

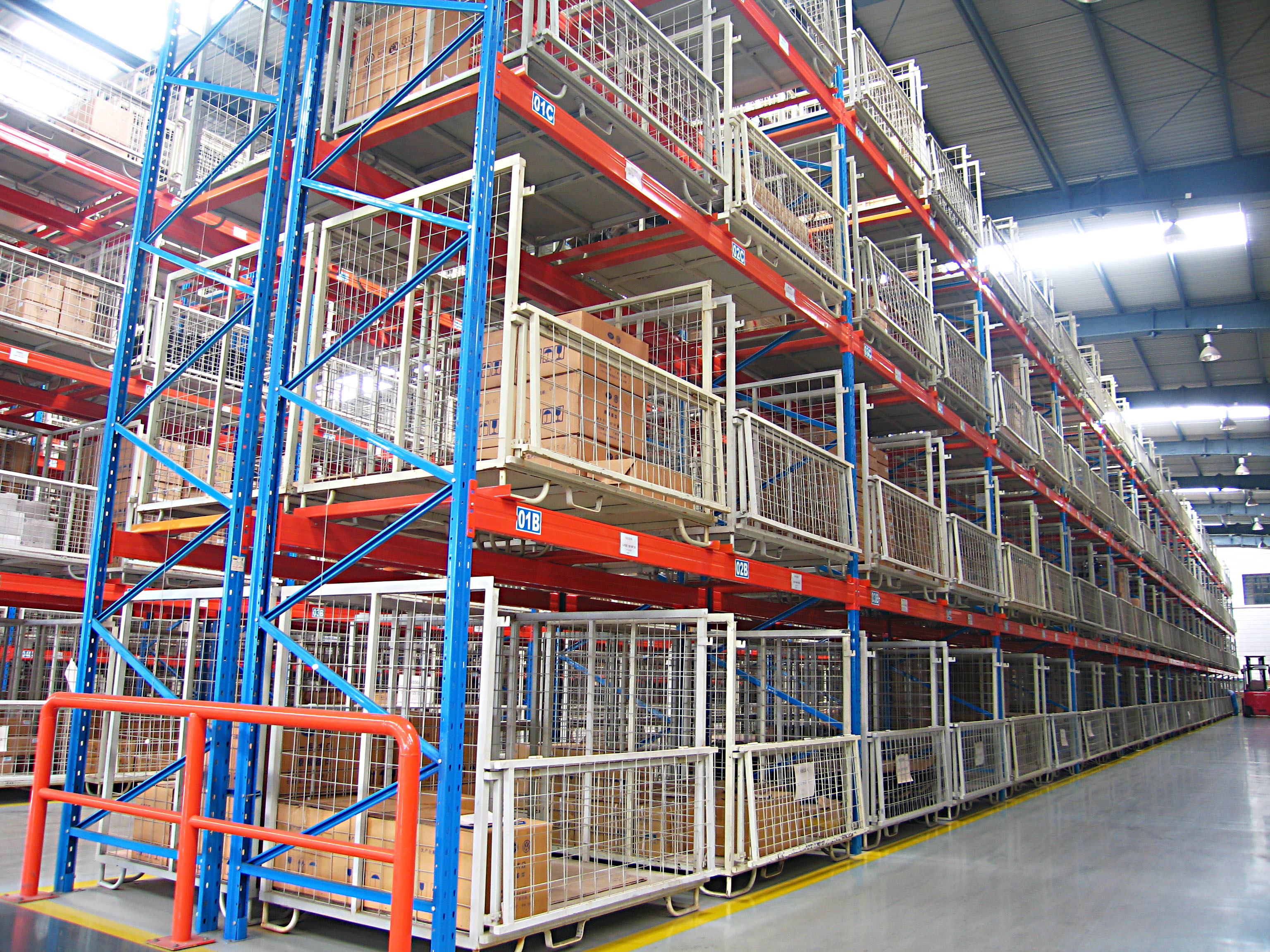

1000kg 2000kg 3000kg Per Layer Warehouse Pallet Rack Industrial Pallet Shelving Rack

Highlight: Warehouse Storage Racks 1000kg/2000kg/3000kg Per Layer Industrial Pallet Shelving Rack

DESCRIPTION:

Gravity shelving is one of the common shelving storage systems, and its high density, large quantity, first in first out characteristics have made it highly favored and recognized by users. Gravity shelving is a type of heavy-duty shelving that evolved from beam pallet shelving. Its structure is similar to beam shelving, except that roller tracks are installed on the beams at a 3-5 ° tilt angle to utilize the weight of goods for storage and retrieval operations. Therefore, it is also known as self gravity shelving or roller shelving. Below, Guangzhou Caiying will take you to a detailed understanding of the usage characteristics of gravity shelving systems.

Advantage:

1. The tray rack structure is simple, safe and reliable, and can be adjusted and combined freely. The inbound and outbound storage is not limited by the order of items. Widely used in storage modes such as pallet storage and forklift access.
2. The column pieces of the pallet shelf are connected by the columns, cross braces and slant support with bolts. The shelf frame is composed of column pieces and C-shaped welded beams, which are fixed with safety pins and have a simple and reliable structure. Each layer can be freely adjusted up and down with a step distance of 75mm or 50mm.
3. Heavy duty shelves can determine the layer load requirements according to the size of the columns and beams, and have the characteristics of large moment of inertia, strong layer load capacity, and strong impact resistance. Each layer load can reach 5000kg/layer under relative design.
4. Heavy duty shelves can have a single column height of up to 12 meters, and pallet shelves have a very large plasticity. On the basis of pallet shelves, mold shelves, attic shelves, three-dimensional warehouse shelves, etc. can be built, and special oil barrel shelves can also be made.
